PLUG VALVE
High-performance plug valves engineered for precise flow control in demanding industrial applications
Metal Seated Plug Valve
Bi-directional valves suitable for on/off and control applications with various operation types
High-Temperature Rated
Product Overview
The valves may be wafer type / lugged wafer type with lever operation (normally up to DN150 (6")), quarter turn gear operated and actuated operated for sizes DN200 and higher. The valves are bi-directional and suitable for on/off and control applications.
Quarter Turn Gear Operated
Actuated Operation Available
Technical Specifications
Actuator:
Single Phase / Three phase
Supply:
220V AC / 110V AC / 415V AC / 380V AC / 24V DC
Enclosure:
Weather Proof / Flame Proof
Type:
ON-OFF / 4-20 mA Modulating / 0~10V DC
Modulating
Size:
1/2" to 12"
MOC:
WCB / CF8 / CF8M
Pressure:
150# / 300# / 600# / 900#
Temperature:
Up to 180°C / 450°C

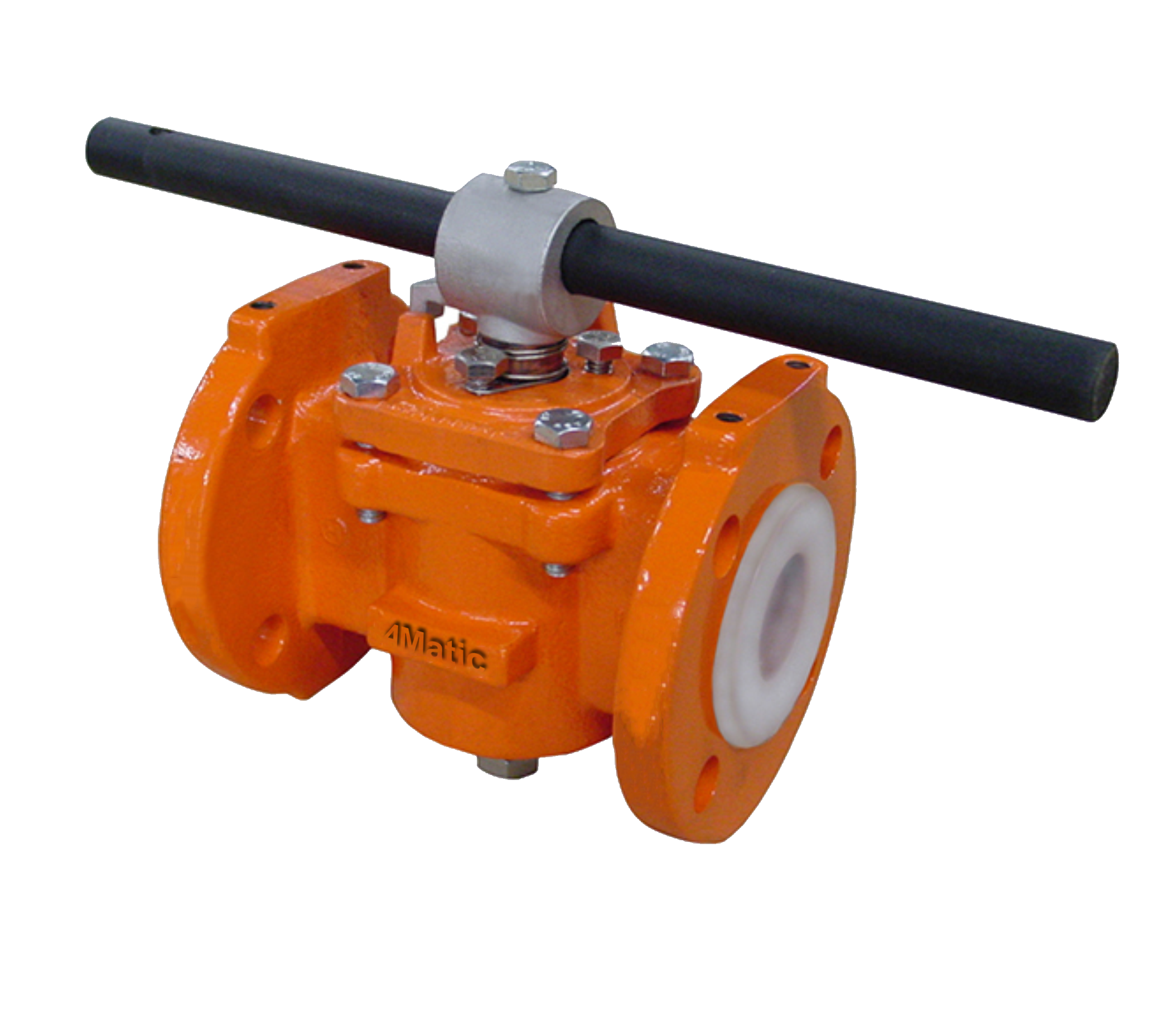

PTFE Lined Plug Valve
Full bore valves with PTFE lining for superior chemical resistance and smooth operation
Chemical Resistant
Technical Specifications
| FULL BORE VALVE SPECIFICATIONS | |
|---|---|
| Body Material | A216 WCB / SS304 / SS316 / A395 |
| Stem Material | A216 / SS304 / SS316 |
| Ball Material | A216 / SS304 / SS316 |
| Hand Lever | A216 / SS304 / SS316 |
| Seat Ring | PTFE |
| Gland Packing | Chevron PTFE |
| Flat Washer/Stub | SS304 |
