BALL VALVES
Premium industrial ball valves designed for reliable shut-off and control applications across various industries

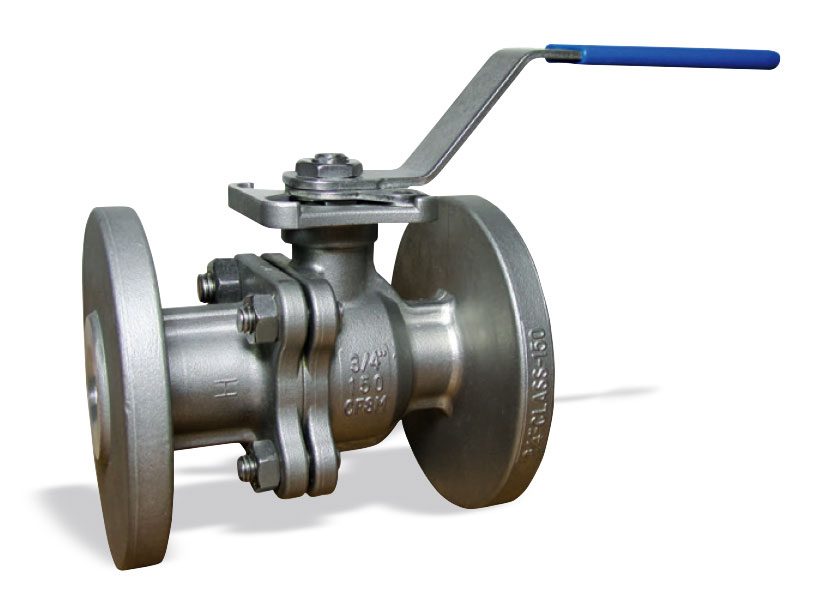

Two Piece Flanged Ball Valves
Full bore or reduced bore valves suitable for on/off and control applications
Bi-Directional
Product Overview
The valves may be full bore or reduced bore and are with lever operation (normally up to DN150), quarter turn gear operated and actuated operated for sizes DN200 and higher. Suitable for on/off and control applications.
Full Bore or Reduced Bore
Lever, Gear & Actuated Operation
General Specifications
Design STD:
API6D / BS5351
Face To Face:
ASME B16.10
To Suit:
Flanges as per ANSI B16.5
Size Range:
DN15 to DN600 (0.5" To 24")
Body Material:
WCB / CF8 / CF8M Etc.
Ball Material:
CF8 / CF8M
Seat Material:
PTFE / Carbon or Glass Filled PTFE
Applications:
Petroleum Processing, Chemicals and Process Industries

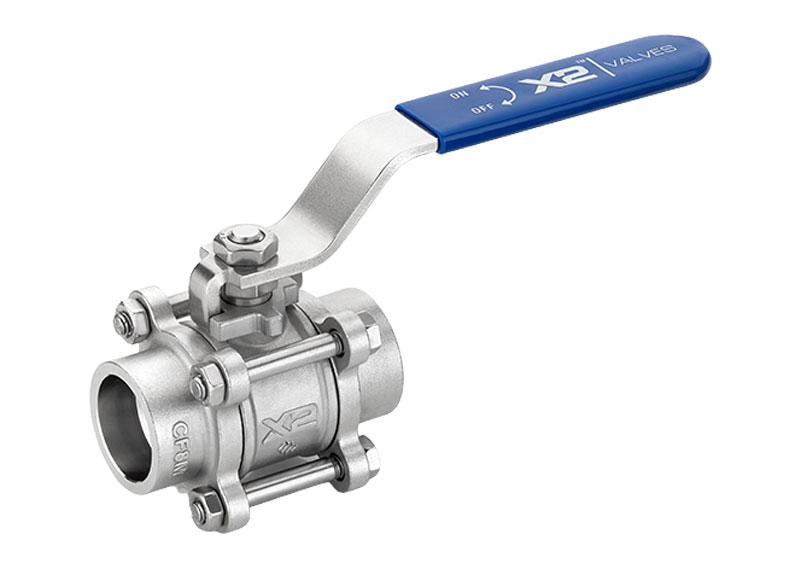

Two Piece & 3 PCS Screwed End/Socket Weld Ends
3 PCS flanged end valves with multiple connection options and operation types
Multiple Connections
General Specifications
| SCREWED/SOCKET WELD END VALVES SPECIFICATIONS | |
|---|---|
| Bore Type | Full / Regular |
| Size Range | 1/4" - 2" in Screwed End / SW End (1 Piece / 3 Piece) 1/2" - 8" in Flanged End (3 Piece) |
| Body Material | WCB / CF8 / CF8M |
| Ball Material | SS304 / SS316 / CF8 / CF8M Etc. |
| Seat Material | PTFE / RTFE |
| Pressure Rating | #150 / #300 |
| Operation | Manual Lever / Gear / Pneumatic Operation |
Key Features

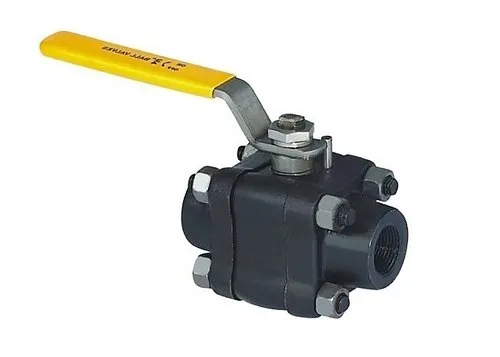

Forged 3 Piece Ball Valves
High-pressure forged ball valves with regular and full bore options
High Pressure
General Specifications
| FORGED 3 PIECE BALL VALVES SPECIFICATIONS | |
|---|---|
| Design STD | Mfgrs. Standard |
| Face To Face | Mfgrs. Standard Size: 1/4" To 2" |
| Body Material | A105 / ASTM A183 F304 / F316 / F316L |
| Ball & Stem Material | SS304 / 316 / 316L |
| Seat Material | PTFE / RTFE (Glass/Carbon filled) / Metal |
| Pressure Rating | #800 and #1500 |
| Bore Type | Regular (Reduced) and Full Bore |
Additional Options
Three Way Valves Available
With T Port and L Port options

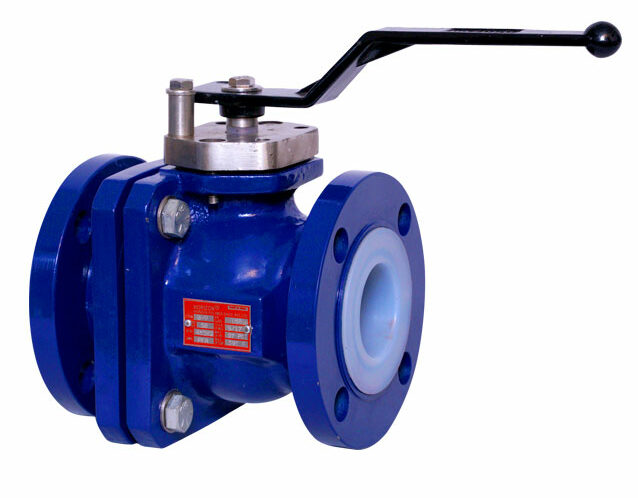

Teflon Lined Ball Valves
Corrosion-resistant valves with PFA/FEP lining for aggressive media applications
Corrosion Resistant
General Specifications
| TEFLON LINED BALL VALVES SPECIFICATIONS | |
|---|---|
| Pressure Rating | Body 15bar and Seat 10bar |
| Spark Test | 15KV |
| Body Material | DI with 3mm PFA Lining |
| Ball & Internals | SS with 3mm PFA/FEP lining |
| Temperature | Max 208°C |
| Size Range | 1/2" To 8" |
Key Features

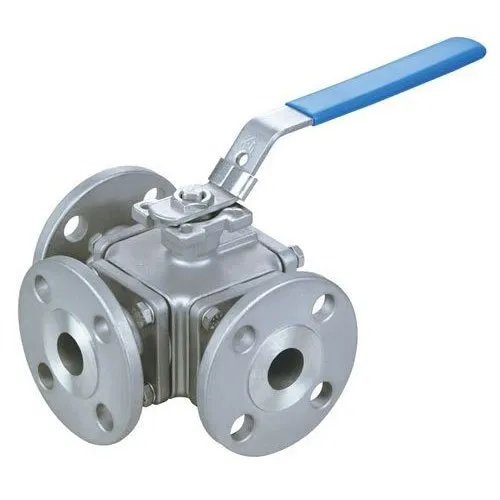

Cast 3 Way Ball Valves
Multi-port ball valves with L and T port configurations for complex flow control
Multi-Port
General Specifications
| CAST 3 WAY BALL VALVES SPECIFICATIONS | |
|---|---|
| Design STD | API6D, ISO-17292 |
| Face To Face | Mfgrs. Standard Size: 1/2" To 8" |
| Body Material | WCB / CF8 / CF8M |
| Ball & Stem Material | SS304 / 316 / 316L |
| Seat Material | PTFE / RTFE (Glass / Carbon filled) |
| Pressure Rating | #150 and #300 |
| Bore Type | Regular (Reduced) and Full Bore |
| Port Type | L Port / T Port |
| Operation | Manual and Actuated (Pneumatic / Electrical) |

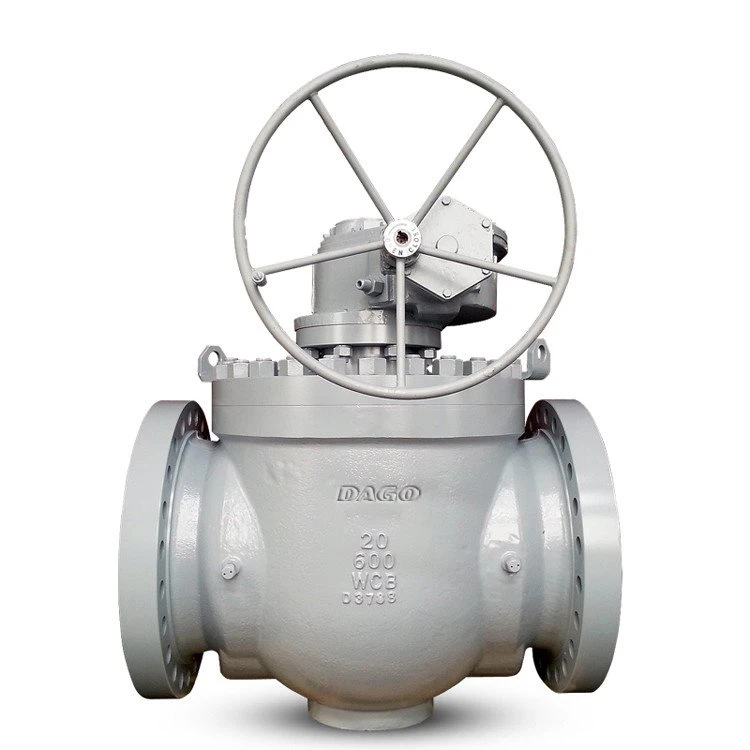

Top Entry Ball Valve
Bi-directional valves with in-line maintenance capability and floating/trunnion mounting
In-line Maintenance
Product Overview
The valves may be full bore or reduced bore with lever operation (normally up to DN150) and quarter turn gear operated for sizes DN200 and higher. Suitable for on/off and control applications with in-line maintenance capability.
General Specifications
| TOP ENTRY BALL VALVE SPECIFICATIONS | |
|---|---|
| Design STD | API6D / BS5351 |
| Face To Face | ASME B16.10 |
| To Suit Flanges | ANSI B16.5 |
| Size Range | DN25 to DN600 (1" to 24") |
| Pressure Rating | #150, #300, #600 and #900 |
| Body Material | WCB / CF8 / CF8M, Duplex SS etc |
| Ball Material | CF8 / CF8M, Duplex SS etc |
| Seat Material | PTFE / Carbon or glass filled PTFE |
| Seat Design | Floating in small sizes, Trunnion mounting in larger sizes |
| Applications | Petroleum processing, chemicals and process industries |
Actuated Valves
Complete valve automation solutions with pneumatic actuators and control accessories
Automated
Product Overview
We supply actuated Ball valves and Butterfly Valves with pneumatic actuators (rack and Pinion / Scotch Yoke type) with ON/OFF as well as Control accessories. Complete automation solutions with various accessories.
Pneumatic Actuators
Control Accessories
Available Accessories
1. Solenoid Valve
For electrical control of pneumatic actuators
2. Limit Switchboxes
With mechanical/PCF sensor for position feedback
3. Air Filter Regulator
For clean, regulated air supply to actuators
4. Positioners
Pneumatic / electro-pneumatic for precise control
5. Quick Exhaust Valves
Volume boosters / Air lock relays for fast operation
6. Manual Overrides
De-clutchable Gear Boxes for manual operation

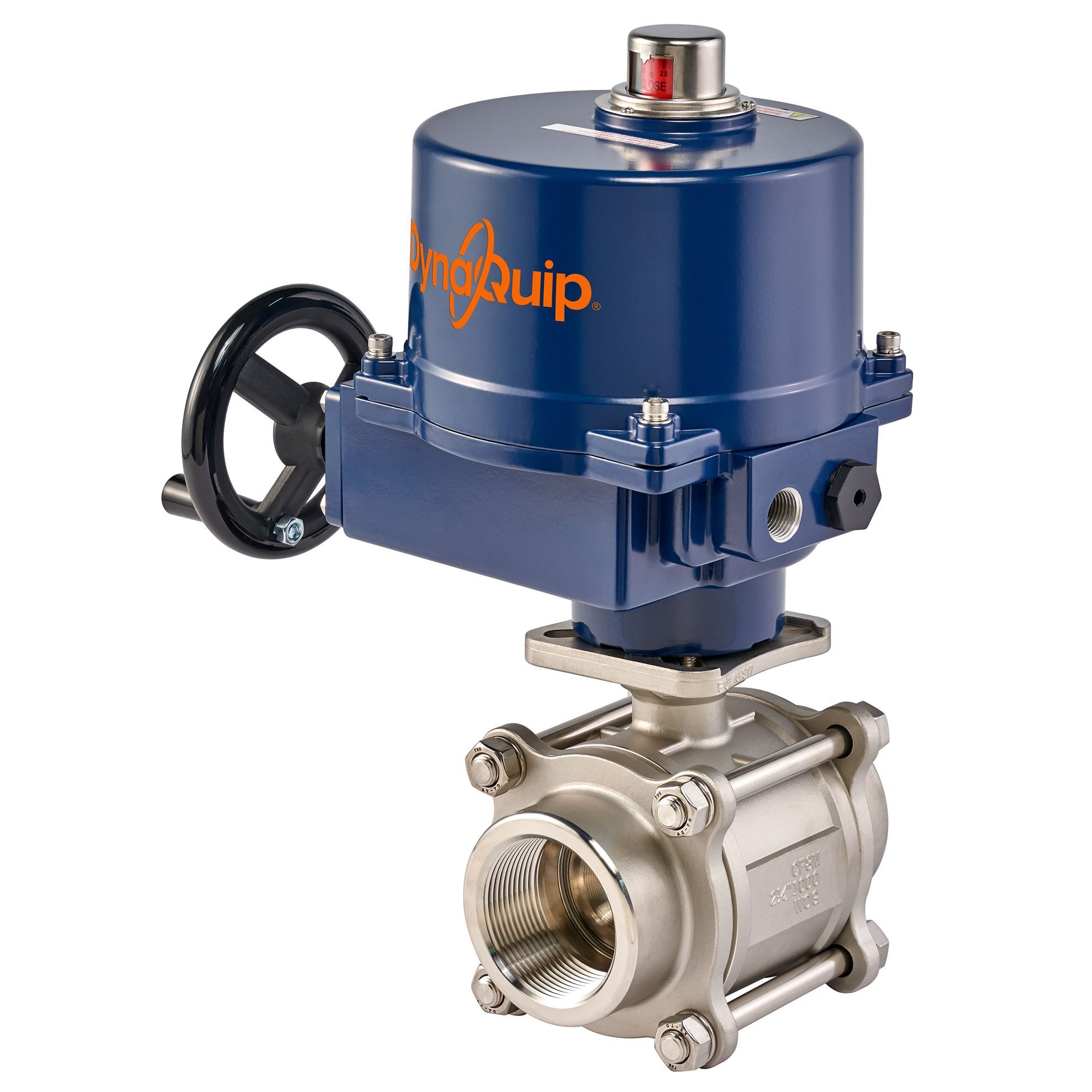

Electrically Actuated Valves
Complete electric valve automation solutions for ON/OFF and control duty applications
Electric Control
Product Overview
Electrically operated Ball valves, Butterfly valves, gate valves and globe valves can be supplied for ON/OFF duty and control duty applications. Complete electric actuation solutions for automated process control.
Electric Motor Actuators
Control & Modulating
