GATE, GLOBE & CHECK VALVES
Premium industrial valves engineered for high-pressure applications and superior performance across various industries

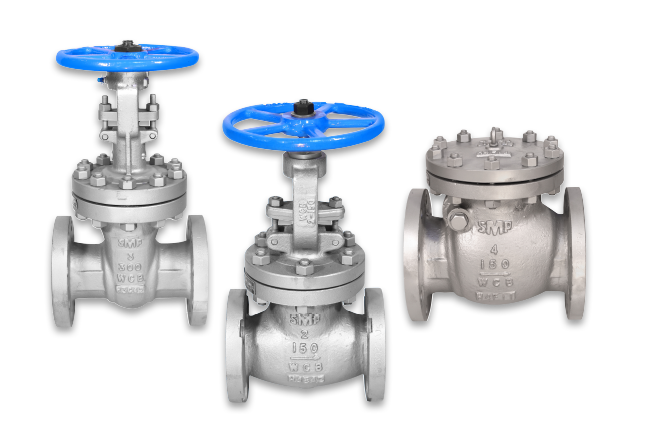

Cast Valve
Bolted OS & Y / Pressure Sealed valves designed for demanding industrial applications
Industrial Grade
Product Overview
High-performance cast steel valves designed to API600/BS1414/API 6D standards with temperature range from -100°C to 800°C.
Bolted OS & Y / Pressure Sealed
Hand Wheel, Gear Box / Electric
Technical Specifications
Design STD:
API600/ BS1414/ API 6D
Pressure Rating:
#150 To #1500
Size Range:
1/2" To 24"
Face To Face:
As Per ASME B16.10
Body Material:
WCB / CF8/CF8M/LCB
Seat:
13% Cr / Stellite-6 (Hard Face)
Temperature:
-100°C To 800°C
Testing Standard:
ISO 5208 / API598

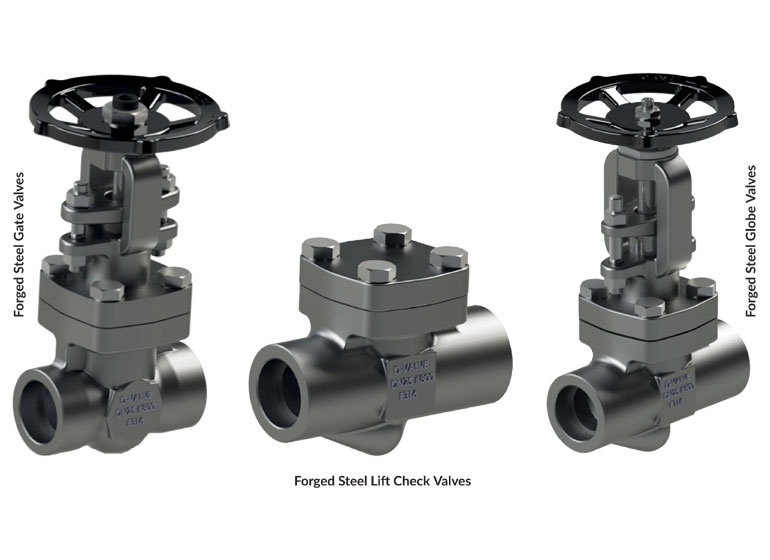

Forged Valves (Gate, Globe and Check)
High-pressure forged steel valves with bolted bonnet OS & Y / seal welded construction
High Pressure
Technical Specifications
| FORGED VALVES SPECIFICATIONS | |
|---|---|
| Design Code | API 602 |
| Pressure Rating | #800 To #2500 |
| Size Range | 10NB TO 50NB |
| End Types | Screwed/ Socket Weld / Butt Weld |
| Body & Bonnet | A105 / A182 F304/F316 /F316L/ Monel |
| Temperature | -100°C To 800°C |
| Testing Standard | As Per API 598 |
Key Features

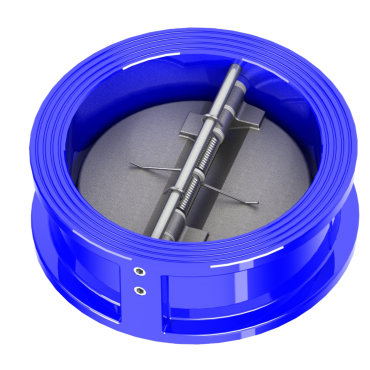

Dual Plate Check Valves
Compact check valves with dual plate design for efficient flow control
Compact Design
Product Overview
Available in wafer, lugged, and flanged configurations with metal and soft seat options for various industrial applications.
Design Standard: API 6D/ API 594
Temperature: -100°C To 800°C
Technical Specifications
Pressure Rating:
#150 To #2500
Size Range:
2" To 24"
Body Material:
DI/WCB/ CF8/CF8M/ LCB
Face To Face:
As Per ASME B16.10
Metal Seat:
13% Cr / Stellite-6
Soft Seat:
EPDM/NBR/PTFE/VITON
Testing Standard:
As Per API 598
Spring Material:
Spring Steel/SS304/SS316/Inconel
Wafer Check Valves
Space-saving wafer check valves designed for compact installation
Space Saving
Technical Specifications
| WAFER CHECK VALVES SPECIFICATIONS | |
|---|---|
| Design Standard | As Per API 6D |
| Pressure Rating | #150 TO #300 |
| Size Range | 2" To 24" |
| Temperature Range | -100°C to 200°C |
| Body/Disc Material | DI/WCB/CF8/CF8M/ LCB |
| Face To Face | As Per ASME B16.10 |
| Testing Standard | As Per API 6D |
Key Features

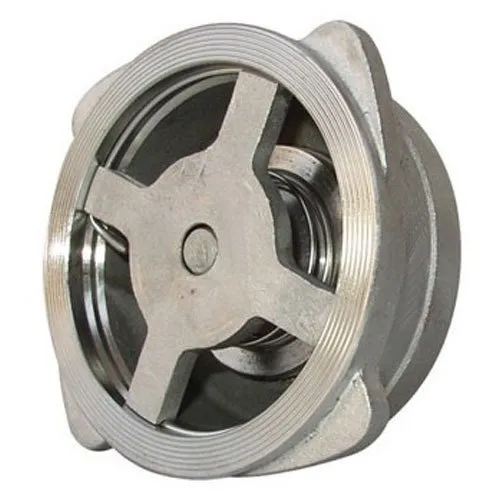

Non-Slam Check Valves
Specialized valves designed to prevent water hammer and slamming
Anti-Slam
Product Overview
Designed to prevent water hammer with wafer type configuration, suitable for various industrial applications.
Face To Face: API 594
Temperature: -100°C to 200°C
Technical Specifications
Pressure Rating:
#150 To #300
Size Range:
1" To 8"
Body Material:
CF8/CF8M
Testing Standard:
API 598
Disc Material:
CF8/CF8M
Seat Material:
Base Material / Stellite-6
End Type:
Wafer Type
Face To Face:
API 594

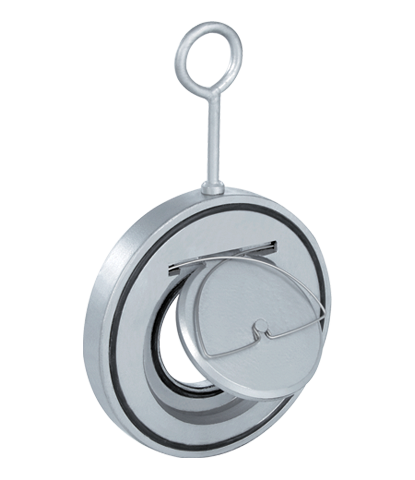

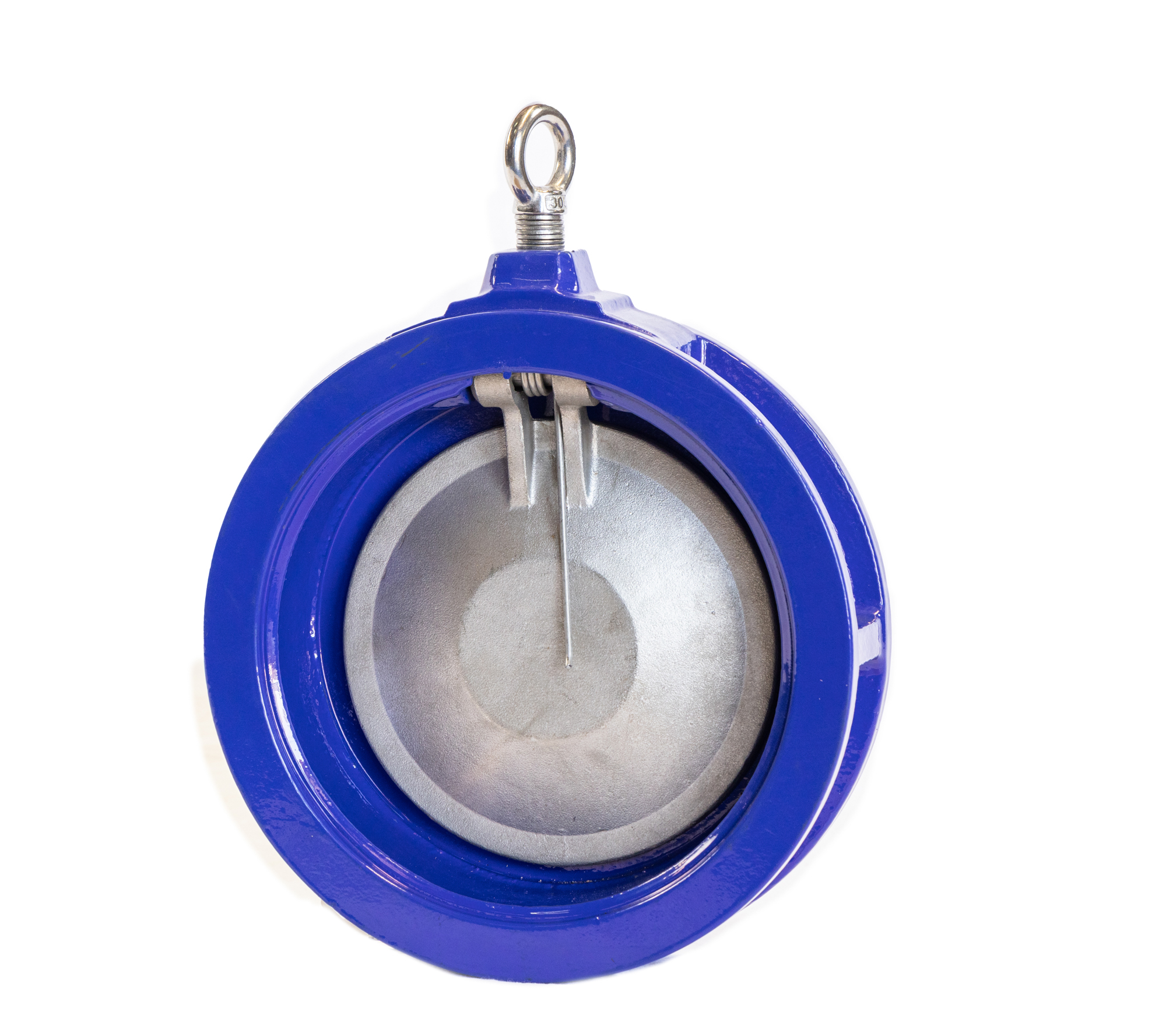

Wafer Single Disc Check Valves
Single disc wafer check valves with counter weight and hydraulic damping options
Counter Weight Option
Technical Specifications
| SINGLE DISC CHECK VALVES SPECIFICATIONS | |
|---|---|
| Face To Face | EN 558-1 (Series16) |
| Pressure Rating | #150 To #300 |
| Size Range | 2" To 24" |
| Body Material | CA15 / CF8/CF8M |
| Disc Material | C-15/CF8 / CF8M |
| Temperature Range | -100°C to 200°C |
| Testing Standard | MSS-SP-61 |
Key Features
Electrically Actuated Valves
Automated valve solutions for ON/OFF and control duty applications
Automated Control
Product Overview
Electrically operated Ball valves, Butterfly valves, gate valves and globe valves can be supplied for ON/OFF duty and control duty applications with various automation options.
ON/OFF & Control Duty
Multiple Valve Types
Application Range
Ball Valves:
Electrically Operated
Butterfly Valves:
Automated Control
Gate Valves:
Electric Actuation
Globe Valves:
Precise Control
Operation Types:
ON/OFF & Modulating
Control Signals:
4-20mA, 0-10V DC
Enclosure:
Weather/Flame Proof
Power Supply:
220V/415V AC, 24V DC
